What is a hydraulic seal?

Hydraulic breakers, often referred to as hammers, are indispensable tools in industries such as construction, demolition, and mining, delivering immense power to shatter concrete, rock, and other tough materials. These machines operate under extreme conditions, enduring high pressures, rapid movements, and harsh environments. At the heart of their reliability lies a critical yet often overlooked component: the hydraulic seal. Hydraulic seals are essential for maintaining system integrity, preventing fluid leaks, and protecting internal components from contaminants. Without them, even the most robust breaker would falter, leading to reduced performance, costly repairs, and significant downtime.

This comprehensive guide dives deep into the world of hydraulic seals, exploring their definition, functions, types, materials, and their specific role in hydraulic breakers. Drawing on industry expertise and insights from trusted suppliers like JSP Seal Kits, this article aims to educate contractors, equipment operators, and maintenance professionals on the importance of hydraulic seals. Whether you’re a seasoned technician or new to breaker maintenance, this guide will equip you with the knowledge to understand, select, and maintain hydraulic seals, ensuring your equipment operates at peak performance.

What Is a Hydraulic Seal?

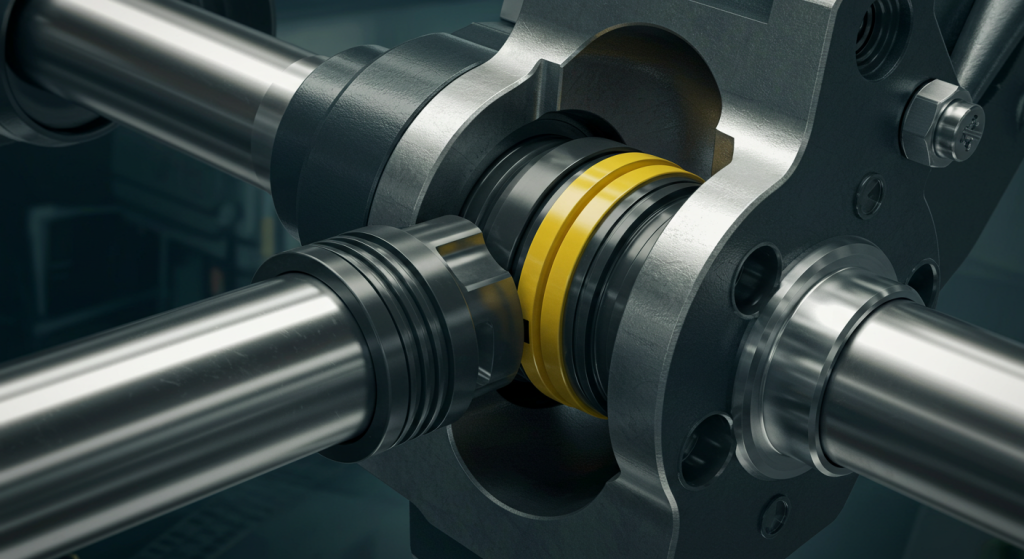

A hydraulic seal is a specialized component designed to prevent the leakage of hydraulic fluid in hydraulic systems while maintaining system pressure and protecting internal components from external contaminants like dirt, water, or debris. These seals are integral to equipment such as hydraulic breakers, cylinders, pumps, and motors, where they ensure efficient operation under demanding conditions, including high pressures, extreme temperatures, and constant motion.

Hydraulic seals act as a barrier between moving parts (e.g., pistons and cylinders) or stationary joints, containing fluid while allowing controlled movement. They are typically part of a seal kit in hydraulic breakers, which includes multiple seals tailored to specific components. The effectiveness of a hydraulic seal directly impacts a breaker’s performance, longevity, and maintenance requirements, making it a critical element in heavy-duty machinery.

The Role of Hydraulic Seals in Hydraulic Breakers

Hydraulic breakers rely on a complex hydraulic system to deliver powerful, repetitive blows to break tough materials. The hydraulic seal plays several key roles within this system:

Leak Prevention: Seals ensure hydraulic fluid remains contained, maintaining the pressure needed for the breaker’s impact force. Leaks reduce efficiency, increase fluid consumption, and pose environmental risks.
Contamination Protection: Seals block external contaminants like dust, dirt, or water from entering the system, protecting components such as pistons, cylinders, and valves from wear or damage.
Pressure Maintenance: By maintaining a tight seal, they preserve system pressure, ensuring consistent power output and preventing energy loss.
Component Longevity: Effective seals reduce friction and wear between moving parts, extending the lifespan of critical components.
Operational Efficiency: Well-functioning seals minimize downtime by reducing the need for frequent repairs or fluid top-offs.

In hydraulic breakers, seals are grouped into a seal kit, which is replaced during maintenance to restore system integrity. Suppliers like JSP Seal Kits provide model-specific kits for various breaker brands, ensuring compatibility and performance.

Types of Hydraulic Seals

Hydraulic seals come in various forms, each designed for specific functions within the hydraulic system. Understanding these types is crucial for selecting the right seal kit for your breaker. Below are the most common types found in hydraulic breakers:

O-Rings

Function: Seal static or low-pressure joints, such as between housing components or fittings.
Characteristics: Circular, donut-shaped seals that fit into grooves, creating a tight seal when compressed.
Applications: Used in valve assemblies, fittings, or covers in breakers.
Advantages: Simple, versatile, and effective for low-motion applications.

Piston Seals

Function: Prevent fluid bypass around the piston, maintaining pressure during its movement within the cylinder.
Characteristics: Dynamic seals that withstand high pressures and rapid motion.
Applications: Critical in the piston-cylinder assembly of hydraulic breakers, where they ensure powerful blows.
Advantages: High-pressure resistance, durable under reciprocating motion.

Rod Seals

Function: Stop fluid leaks along the rod while protecting the system from external contaminants.
Characteristics: Dynamic seals located at the rod’s exit point, designed for high-pressure and sliding motion.
Applications: Found in breakers where the rod extends from the cylinder, preventing leaks during operation.
Advantages: Balances leak prevention with contamination protection.

Dust Seals (Wipers)

Function: Block dirt, dust, or water from entering the system, protecting internal seals and components.
Characteristics: Positioned at the outer edge of the rod or cylinder, often with a scraping lip to remove debris.
Applications: Essential in breakers operating in dusty or wet environments, such as quarries or construction sites.
Advantages: Enhances system longevity by reducing contamination.

Backup Rings

Function: Support primary seals in high-pressure conditions, preventing extrusion or deformation.
Characteristics: Non-sealing components that reinforce O-rings or piston seals.
Applications: Used in high-pressure areas of breakers, such as piston assemblies.
Advantages: Increases seal durability under extreme pressures.

Gaskets

Function: Seal static surfaces between components, such as housing or valve covers.
Characteristics: Flat or shaped seals that compress between two surfaces.
Applications: Found in breaker housings or valve assemblies.
Advantages: Effective for stationary, high-pressure joints.

Each type of seal serves a unique purpose, and a hydraulic breaker seal kit typically includes a combination of these to address all sealing needs during maintenance.

Materials Used in Hydraulic Seals

The performance and durability of hydraulic seals depend on their material, which is chosen based on the breaker’s operating conditions, such as pressure, temperature, and environment. Below are the most common materials used in hydraulic seals:

Nitrile Rubber (NBR):
Properties: Resistant to oils, hydraulic fluids, and moderate temperatures (up to 120°C/248°F).
Applications: General-purpose seals in breakers used for standard construction tasks.
Advantages: Cost-effective, good abrasion resistance.
Limitations: Less suitable for extreme heat or aggressive chemicals.
Polyurethane:
Properties: Highly wear-resistant, flexible, and durable under high-pressure and abrasive conditions.
Applications: Piston and rod seals in breakers used for heavy-duty tasks like quarrying or demolition.
Advantages: Excellent toughness, long lifespan in harsh environments.
Limitations: Sensitive to high temperatures (above 100°C/212°F).
Fluorocarbon (Viton):
Properties: Heat-resistant (up to 200°C/392°F), chemical-resistant, and durable in aggressive environments.
Applications: Seals in breakers operating in high-temperature conditions, such as asphalt breaking or hot climates.
Advantages: Superior performance in extreme conditions.
Limitations: Higher cost, less flexible at low temperatures.
PTFE (Teflon):
Properties: Low-friction, chemically inert, and resistant to high temperatures and pressures.
Applications: High-speed or high-pressure seals in advanced breaker models.
Advantages: Minimal wear, excellent for dynamic applications.
Limitations: Less elastic, often used with backup rings.
NOK Seals:
Properties: Premium Japanese seals known for exceptional durability, precision, and versatility across conditions.
Applications: Found in high-quality seal kits for brands like Epiroc, Stanley, or General Breaker.
Advantages: Reliable performance, widely trusted in the industry.
Limitations: May be specific to certain kits or suppliers.

The choice of material depends on factors like the breaker’s workload, job site conditions (e.g., dusty, wet, or hot), and fluid compatibility. Suppliers like JSP Seal Kits offer kits with materials tailored to specific breaker models and applications.

Hydraulic Seals in Breaker Seal Kits

In hydraulic breakers, seals are grouped into a seal kit, which is replaced as a unit during maintenance to restore the hydraulic system’s integrity. A typical seal kit includes:

Multiple O-rings for various joints.
Piston seals for the main cylinder.
Rod seals for the rod assembly.
Dust seals to protect against external debris.
Backup rings and gaskets for high-pressure areas.

Seal kits are designed to be model-specific, matching the exact specifications of a breaker’s components, such as piston diameter or cylinder design. For example, a kit for an Epiroc SB 302 will differ from one for a Caterpillar H115E due to differences in pressure ratings and component sizes. Universal kits exist but are less reliable for high-performance breakers.

When replacing seals, it’s critical to use a complete kit from a reputable supplier like JSP Seal Kits to ensure all seals are replaced simultaneously, preventing uneven wear or leaks. Partial replacements can compromise the system, leading to early failure.

Factors Affecting Hydraulic Seal Performance

The effectiveness and lifespan of hydraulic seals depend on several factors, which should be considered when selecting a seal kit:

Operating Pressure: Breakers with high-pressure systems (e.g., Komatsu JTHB70) require robust seals like polyurethane or fluorocarbon to withstand stress.
Temperature: High temperatures (e.g., asphalt breaking) demand heat-resistant seals like Viton, while cold climates require flexible materials to avoid cracking.
Environment: Dusty sites need strong dust seals, while wet conditions require corrosion-resistant materials.
Hydraulic Fluid: Seals must be compatible with the fluid type (e.g., mineral-based or synthetic) to avoid swelling or degradation.
Usage Frequency: High-frequency use accelerates seal wear, necessitating durable materials like NOK seals.
Installation Quality: Improper installation (e.g., stretching or twisting seals) can cause immediate failure, emphasizing the need for specialized tools and clean workspaces.

Understanding these factors helps you choose a seal kit that matches your breaker’s demands, ensuring long-term reliability.

Choosing the Right Hydraulic Seal Kit

Selecting the appropriate seal kit for your hydraulic breaker involves several key steps to ensure compatibility and performance:

Identify Breaker Details:

Check the breaker’s make (e.g., Epiroc, Soosan), model (e.g., SB 302, SB81), and serial number on the nameplate or manual.
Provide these details to suppliers like JSP Seal Kits to confirm kit compatibility.

Choose Model-Specific Kits:

Opt for kits designed for your breaker model to ensure a precise fit. For example, a Toku TNB151LU kit won’t fit a TNB230LU.
Avoid universal kits for high-pressure or frequent-use breakers, as they may not seal effectively.

Verify Material Suitability:

Match seal materials to your job site conditions (e.g., polyurethane for dusty quarries, fluorocarbon for hot climates).
Look for kits with NOK seals for proven durability.

Select a Reputable Supplier:

Choose suppliers like JSP Seal Kits, Hercules Sealing Products, or Fujis-Seal for high-quality, OEM-compatible kits.
Ensure the supplier offers warranties and technical support for fitment assistance.

Check Kit Contents:

Confirm the kit includes all necessary seals (O-rings, piston seals, rod seals, dust seals, gaskets) to avoid incomplete repairs.
Compare with the breaker’s manual or supplier specifications.

Plan for Installation:

Use specialized tools (e.g., seal installation tool, non-metallic pick, torque wrench) to avoid damaging seals.
Work in a clean environment to prevent contamination.
Follow the breaker’s manual for torque and assembly instructions.

By following these steps, you can select a seal kit that restores your breaker’s performance and withstands its operating conditions.

Hydraulic Seal Compatibility Table

Seal Type	Function	Common Materials	Applications in Breakers	Suppliers
O-Rings	Seal static/low-pressure joints	Nitrile Rubber, Fluorocarbon	Valve assemblies, fittings, covers	JSP Seal Kits, Hercules
Piston Seals	Prevent fluid bypass around piston	Polyurethane, PTFE, NOK Seals	Piston-cylinder assembly	JSP Seal Kits, Fujis-Seal
Rod Seals	Stop leaks along rod, block contaminants	Polyurethane, Fluorocarbon, NOK Seals	Rod assembly	JSP Seal Kits, Hercules
Dust Seals (Wipers)	Block dirt/water from entering system	Polyurethane, Nitrile Rubber	Rod or cylinder outer edge	JSP Seal Kits, Fujis-Seal
Backup Rings	Support seals in high-pressure conditions	PTFE, Nitrile Rubber	Piston or rod assemblies	JSP Seal Kits, Hercules
Gaskets	Seal static surfaces between components	Nitrile Rubber, Fluorocarbon	Housing, valve covers	JSP Seal Kits, Hercules

Common Mistakes to Avoid with Hydraulic Seals

Using Universal Kits for High-Performance Breakers: Universal kits may not seal effectively under high pressure, leading to leaks. Choose model-specific kits for critical applications.
Ignoring Material Compatibility: Using nitrile rubber in high-temperature environments can cause seal degradation. Match materials to conditions.
Improper Installation: Stretching, twisting, or contaminating seals during installation can cause immediate failure. Use specialized tools and a clean workspace.
Skipping Complete Kit Replacement: Replacing only some seals can lead to uneven wear or leaks. Always replace the entire seal kit.
Choosing Low-Quality Kits: Kits from unverified suppliers may use inferior materials, failing prematurely. Trust reputable sources like JSP Seal Kits.

Maintenance Tips for Hydraulic Seals

To maximize the lifespan of hydraulic seals and your breaker’s performance, follow these maintenance practices:

Regular Inspections: Check for leaks, fluid discoloration, or performance drops every 6–12 months, depending on usage, to detect seal wear early.
Use Compatible Hydraulic Fluid: Ensure the fluid matches the manufacturer’s specifications to avoid seal swelling or degradation.
Keep the Breaker Clean: Remove dirt and debris after use to reduce stress on dust seals and prevent contamination.
Monitor Operating Conditions: Avoid extreme temperatures or harsh environments when possible, or use seals suited to those conditions (e.g., fluorocarbon for heat).
Schedule Seal Replacement: Replace seal kits every 1–2 years or as recommended by the manual, even if no issues are apparent, to prevent failures.
Hire Professionals if Needed: For complex breakers or if you lack experience, consult a technician to ensure proper installation.

Why Choose JSP Seal Kits?

JSP Seal Kits is a trusted supplier of high-quality, OEM-compatible seal kits for hydraulic breakers from brands like Epiroc, Caterpillar, Daemo, Soosan, and more. Their kits feature durable materials like polyurethane, fluorocarbon, and NOK seals, ensuring reliability in demanding conditions. With comprehensive kits, expert technical support, and warranties, JSP Seal Kits simplifies the process of selecting and installing the right seal kit, offering fast delivery to minimize downtime. Their commitment to quality and customer service makes them a go-to choice for breaker maintenance.

Conclusion

Hydraulic seals are the unsung heroes of hydraulic breakers, playing a vital role in preventing leaks, protecting against contamination, maintaining pressure, and ensuring operational efficiency. From O-rings and piston seals to dust seals and gaskets, each type serves a unique purpose, with materials like polyurethane, fluorocarbon, and NOK seals tailored to specific conditions. In hydraulic breakers, seals are part of a model-specific seal kit, replaced during maintenance to restore system integrity. By understanding the types, materials, and factors affecting seal performance, you can select the right seal kit for your breaker, ensuring long-lasting reliability.

Choosing a high-quality seal kit from a reputable supplier like JSP Seal Kits guarantees compatibility and durability, while proper installation and maintenance practices extend seal life and minimize downtime. The compatibility table above provides a quick reference for seal types and applications, helping you make informed decisions. Whether you’re tackling heavy-duty demolition or routine maintenance, hydraulic seals are the backbone of your breaker’s performance. Visit JSP Seal Kits today to find the perfect seal kit and keep your hydraulic breaker in top condition.
